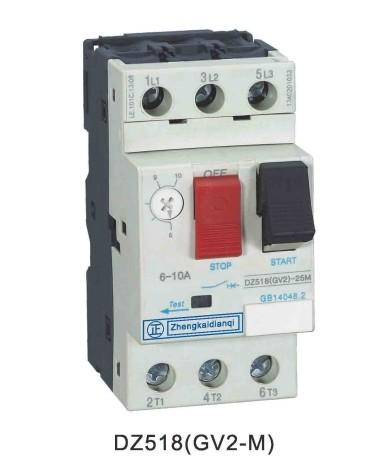

Miniature DZ518(GV2-M/ME) Electric Motor Protection Circuit Breaker Button Controls
Product Description:
DZ518(GV1,GV2,GV3) the series electric motor protection circuit breaker, uses the modular design, the contour is artistic, the volume is small, breaks protects, inside sets Hot Relay, the function is strong, the versatility is good. The DZ518 series conforms to IEC60947.2 and IEC60947-4.1 as well as the EN60947-1 standard. The switch and the contact device may compose the electric motor is direct Starts. The DZ518 series outer covering protection rankmay achieve IP65. This series pooled three types model product: DZ518(GV2-M, ME) is the electric motor belt thermomagnetism protection circuit breaker which the button controls; DZ518(GV2-RS) is the electric motor belt thermomagentism protection circuit breaker which the change-over switch controls; DZ518(GV2-LS,LE) is the electric motor belt magnetism protection circuit breaker which the change-over switch controls (does not bring hot protection).
Product Advantage:
◆ Adjustable current setting value: when used, it can be adjusted to the appropriate current setting value indication position according to the actual working current.
◆ Can simulate the tripping design of the mechanism: the mechanism can be tripped by TEST, which is convenient for the simulation test.
◆ Front laser marking: the marking content is clear and durable.
◆ Double breakpoint structure: double breakpoints of contacts, suppress and disperse arc energy, improve arc extinguishing effect, improve connection breaking capacity, reduce contact electrical losses, effectively improve product electrical life.
◆ Thermal magnetic comprehensive protection structure: the product has multiple protection functions of overload, short circuit, three-phase unbalance.
Technical Parameters:
| The adjusting range of rated current ie(A) |
The standard power of three-phase electromotor KWAC-3,50Hz/60Hz |
| 230/240V |
400V |
415V |
440V |
500V |
690V |
| 0.1-0.16 |
|
|
|
|
|
|
| 0.16-0.25 |
|
|
|
|
|
|
| 0.25-0.40 |
|
|
|
|
|
|
| 0.4-0.63 |
0.37 |
|
|
|
|
|
| 0.63-1 |
|
|
|
0.37 |
0.37 |
0.55 |
| 1-1.6 |
|
0.37 |
|
0.55 |
0.75 |
1.1 |
| 1.6-2.5 |
0.37 |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
| 2.5-4 |
0.75 |
1.5 |
1.5 |
1.5 |
2.2 |
3 |
| 4-6.3 |
1.1 |
2.2 |
2.2 |
3 |
3.7 |
4 |
| 6-10 |
2.2 |
4 |
4 |
4 |
5.5 |
7.5 |
| 9-14 |
3 |
5.5 |
5.5 |
7.5 |
7.5 |
9 |
| 13-18 |
4 |
7.5 |
9 |
9 |
9 |
11 |
| 17-23 |
5.5 |
11 |
11 |
11 |
11 |
15 |
| 20-25 |
5.5 |
11 |
11 |
11 |
15 |
18.5 |
| 24-32 |
7.5 |
15 |
15 |
15 |
18.5 |
23 |
Application:
DZ518 circuit breaker(GV2-M) moulded case type circuit breaker)is suitable for the circuit with voltage up to 690v,current 1-80A,It has the function such as over-load protection,phase failure protection,short-circuit protection for mouse cage type asynchronous motor and can also control the infrequent start of mouse cage type asynchronous motor,In addition,it can protect the distribution line,ex-change the load infrequently,and serve as isolator.
